Overview
PWR247 Techsol 4U Pvt. Ltd. Lithium Iron Phosphate
(LiFePO₄) battery module is designed for energy storage
and power supply system applications. The module is
integrated with an intelligent BMU/RBMS, offering
significant advantages in safety, cycle life, energy density,
operating temperature range, and environmental
protection.

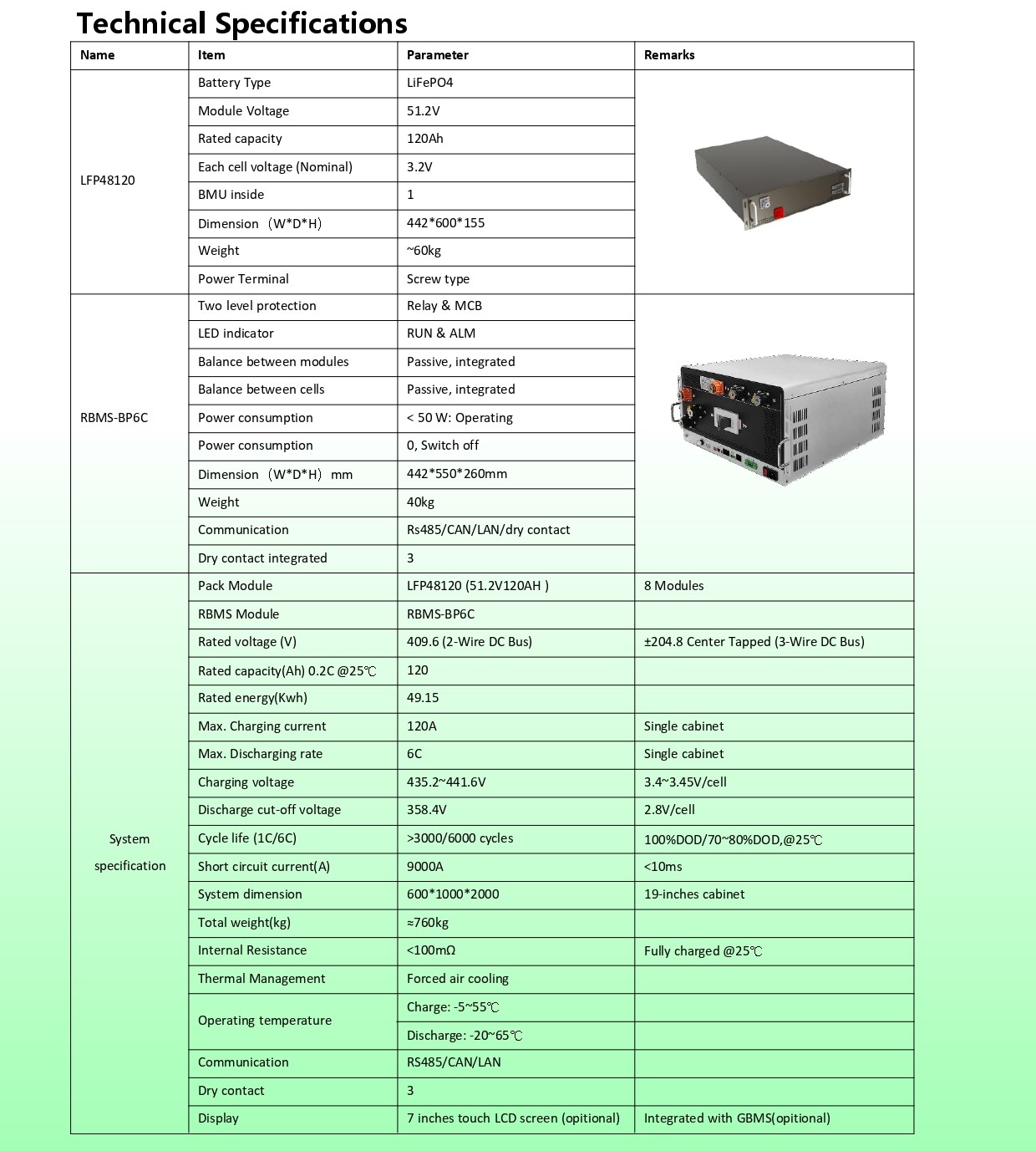

This specification outlines the type, dimensions,
structure, electrochemical performance, service life, and
RBMS features of the product. The specifications may be
updated in accordance with varying customer
requirements.
Features
-
The battery module comprises single LFP cells, wiring, BMS, container, battery racks, and RBMS.
-
Built with high-performance LFP single cells, ensuring long life, safety, and a wide operating temperature range
-
Features high energy density, compact size, lightweight design, and zero pollution.
-
Equipped with RBMS-BMU for protection against voltage, current, and temperature variations throughout the process.
-
Integrated communication interfaces (CAN2.0 and RS485) enable connectivity with UPS or PC.
-
Built-in LED indicator for displaying SOC (State of Charge) and operating status.
-
Provides cell balancing and rack-to-rack balancing for stable performance.
-
Customizable LCD display for real-time battery system Information
-

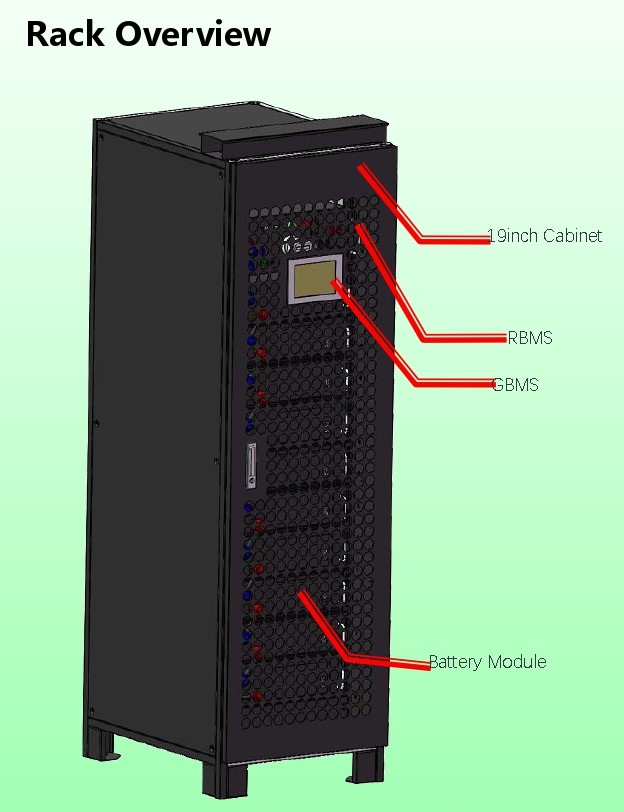

Housed in a standard 19-inch cabinet for easy installation and capacity expansion.
-
Option to customize the battery system with a neutral line (Compatible to 3-wire or 2-wire DC bus of UPS systems).
-
Designed for a service life of up to 15 years, offering stable, maintenance-free performance, 6000 cycles & 6C design.
-
UL9540A Compliant Li-ion cells.
