LFP1C-48100

Overview

PWR247 Technology provides safe LiFePO4 battery solutions for UPS and Energy storage system. This battery system serves for UPS and Energy storage system with perfect compatibility and safe long cycle life.

Features

• Interal cell balancing ,Passive equalization , the maximum equalization current up to 100mA
• High-precision cell voltage and temperature acquisition: ±3mv,±1℃ ;
• Fan control circuit and interface, realize heat dissipation inside the module

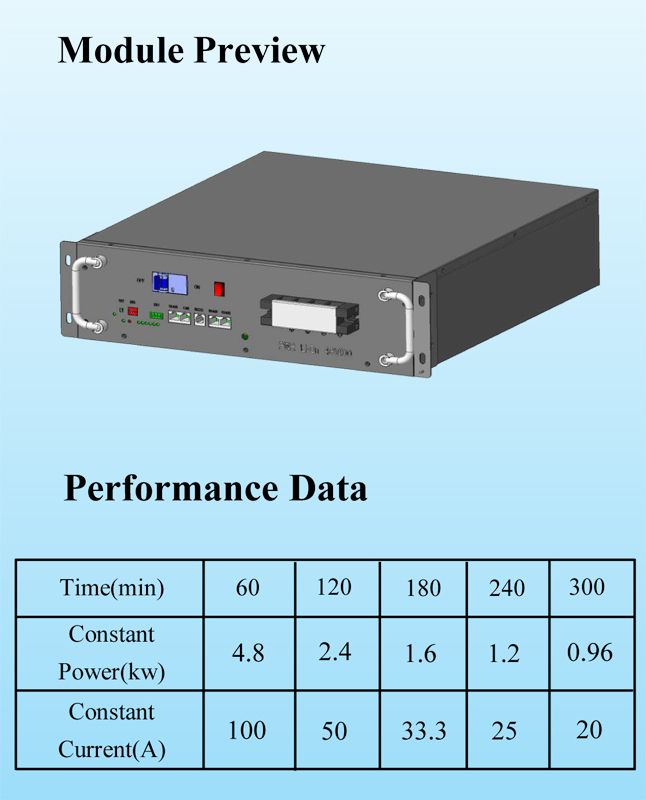

Module Preview

Performance Data
