LFP-409.6V100Ah

Overview

PWR247 provides safe LiFePO4 battery solutions for UPS and Energy storage system. This battery system serves for UPS and Energy storage system with perfect compatibility and safe long cycle life.

Features

• Can/RS485 Communication output for monitoring
• Achieve up 32 BMU in cascade communication Interal cell balancing ,Passive equalization , the maximum equalization current up to 300mA
• High-precision cell voltage and temperature acquisition: 3mv, 1 C;
• Fan control circuit and interface, realize heat dissipation inside the module

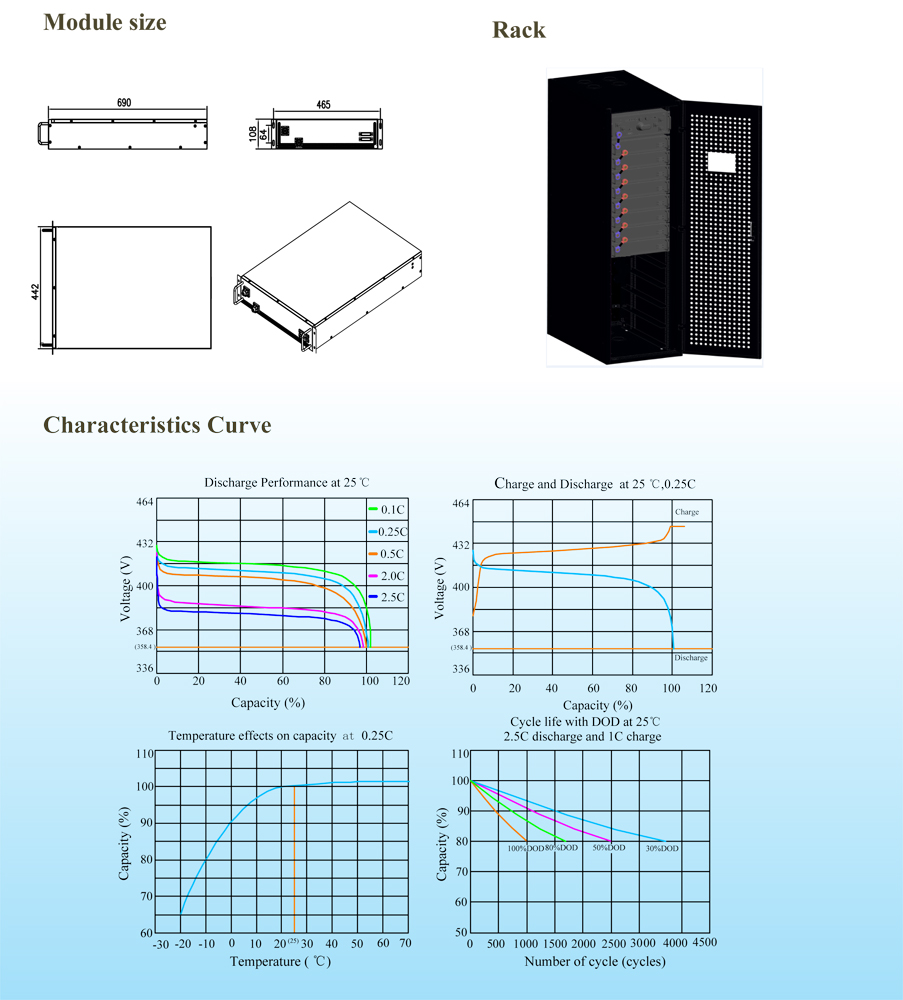

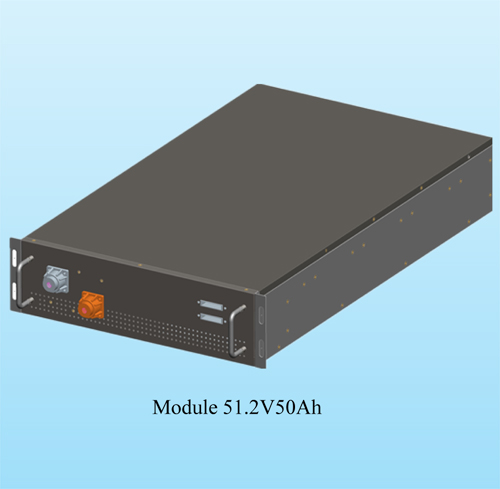

Module Preview
