Product Overview

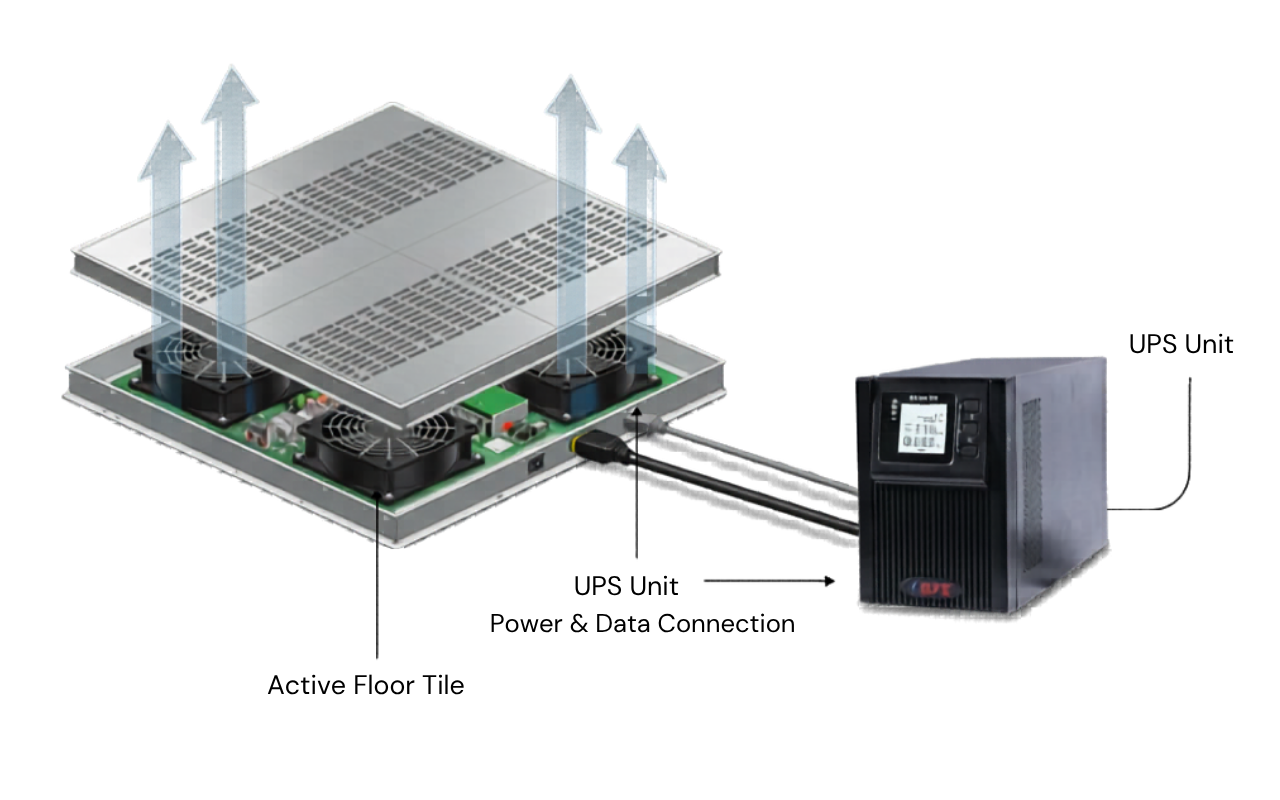

Active tiles with 30 minutes backup are advanced airflow management solutions designed to enhance cooling efficiency in data centers. Functioning as both air boosters and regulators, these tiles optimize airflow distribution by delivering targeted cooling to high-density server racks. Equipped with an EC fan, temperature sensors, and an airflow controller, active tiles dynamically adjust to thermal conditions, preventing hot spots and reducing cooling losses. Seamlessly integrated into standard raised flooring, they ensure uniform cooling, improve energy efficiency, and enhance the overall performance of precision air-conditioning systems.
Technical Features
Innovative components engineered for high-density environments
Ultra-Thin Profile
- ■ World's thinnest tile: 60mm
- ■ Traditional designs: 450mm thickness
- ■ Saves significant under-floor space
Easy Installation
- ■ Simple swap-and-replace design
- ■ No structural modification required
- ■ Minimal downtime during setup
Lightweight Composite
- ■ Reinforced plastic construction
- ■ Corrosion-free & Non-conductive
- ■ 40% lighter than metal tiles
Multi-Fan System
- ■ 4 or 8 fan redundancy configuration
- ■ Hot-swappable fan modules
- ■ Built-in failure alarm system
Power & Acoustics
- ■ Compatible with UPS (AC) & SMPS (DC)
- ■ Brushless DC fans: 48 dBA
- ■ Ultra-quiet high-density cooling
Efficiency & ROI
- ■ 50% lower energy consumption
- ■ 50% cost reduction in ops
- ■ Economical logistics & transport
Product Specifications
| PARAMETERS | MODEL | BPE5KA | BPE7KA | BPE10KA | BPE5KD | BPE7KD | BPE10KD |
|---|---|---|---|---|---|---|---|
| Electrical | Max air flow @ Zero static pressure | 720 CFM | 960 CFM | 1440 CFM | 720 CFM | 960 CFM | 1440 CFM |
| Input Voltage | 230 VAC | -48 VDC | |||||
| Power Consumption | 126W | 168W | 252W | 126W | 168W | 252W | |
| Variable speed Operation | Available | ||||||
| Mechanical | Tile Measurement | 600 mm x 600 mm | |||||
| Thickness | ~100 mm | ||||||
| Weight | ~10 Kg | ||||||
| Material | Composite | ||||||
| Load Capacity | 1.5 kN | ||||||
