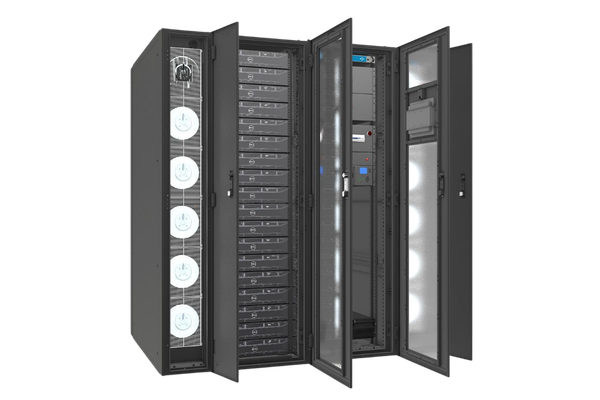

All-in-One Mini Data Centre Integrated Solution
- All-in-One Rack Cooling System Integrated Air Conditioner, UPS, Battery, PDU & Real Time Monitoring Software
- Plug and Play — Easy, Swift and Smooth Deployment
- Sealed Cabinet Design for Sustainable Cooling and Noise Reduction
- Energy-Efficient Cooling by Latest Inverter Technology — Auto-Adjust Between 3.5KW to 10.5KW/3Ton
Core Specifications
Trusted Across Industries
System Outlook
Powerful components built for reliability and performance
Smart Cabinet
42U x 600x1200mm, sealed design, anti-rust coating, removable side panels, IP40 protection.
10" HMI Touch LCD
UPS status, temperature & humidity monitoring, emergency alerts, real-time analytics.
DC Inverter AC
R410A refrigerant, redundant fans, auto-adjust 3.5–10.5kW cooling capacity.
PDU & Switch Box
0U standard (IEC C13 x15) or 1U Meter PDU with 8 controllable outlets, 3U manual bypass.
Online UPS
3U ~ 6U 3kVA ~ 12 kVA with Inbuilt Battery
Security & Monitoring
Smoke sensor, LED light, camera, magnetic lock, leakage sensor, alarm beacon.
Technical Specifications
IDU-3000 | IDU-6000 | IDU-10000 | IDU-12000
| AIR-CONDITIONER | |
| Maximum Cooling Capacity | Automatic Controlled Auto-Adjust Between 3.5/kW to 10.5kW/3Ton for Maximum Energy Efficiency |
| Power Supply | 230V/50Hz Single Phase |
| Rated Power Consumption | 1100W |
| Air Flow | ≥ 700 CHM |
| Dimension WxDxH (mm) | 438x740x222 (5U) (In-Rack), 763x250x285 (External Compressor) |
| Weight (Kg) | 15 (In-Rack), 35 (Compressor) |
| Refrigerant Type | R410A |
| Design Lifetime | 10 Years |
| Humidity / Temp | 0-90% RH / -15~45°C |
| PDU & SWITCH BOX | |
| Standard PDU | 0U with IEC C13 x 15 |
| Optional PDU | 1U Meter Type for 8 Controllable Outlets |
| Switch Box | 3U with MCBs for Mains Power/UPS/AC/Manual Bypass/Light and SPD |
| MONITORING | |
| Display | 10 Inch Colour Touch LED |
| Standard Accessories | Temperature, Humidity, Smoke Sensor and LED Light |
| Optional Accessories | Integrated Camera, Magnetic Door Lock, Leakage Sensor and Alarm Beacon |
| UPS (MP Series) | |
| Model | MP1103B6 / MP1106LB16 / MP1110LB16 / MP1112LB16 |
| Phase | 1Ph In/Out (Std), 3Ph In/Out (Optional 6-12kVA) |
| Capacity (kVA) | 3 / 6 / 10 / 12 |
| Battery (inbuilt) | 3kVA: 6x12V/7-9Ah | 6-12kVA: 16x12V/7-9Ah |
| Features | Online UPS, Space Saving UPS with Inbuilt Battery |
| Dimension (mm) | 3kVA: 438x580x133(3U) | 6-12kVA: 440x660x176(4U) |
| Net Weight (Kg) | 30 / 58 / 63 / 65 |
| CABINET (42U) | |
| Usable Space | 30U (IDU-3000/6000) | 29U (IDU-10000/12000) |
| Bearing Load | 1500Kg |
| Protection Class | IP40, Ventilation fan holes |
| Dimension (mm) | 600x1200x2000 (42U) |
| Weight | 150Kg |
Cooling Ventilation System
Auto-adjust cooling capacity from 3.5KW to 10.5KW based on thermal load. Redundant fans ensure 24/7 reliability.
Emergency Cooling Fan
Automatic activation during extreme conditions, ensuring IT equipment safety.
Alternative UPS Selections & Software
- MP Series 3kVA (3U) with LED display
- MP Series 6/10/12kVA (4U) high density
- Real-time monitoring software — UPS status, environment tracking, remote management
