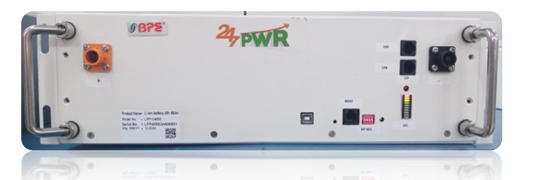

Lithium-ion Battery 48V 50Ah
Model: LFP1C4850
✓ TSEC Approved (BSNL)
✓ BIS Certified Cells (IS16046-2:2018)
✓ IEC62619 Tested (NABL Approved Lab)
✓ UN38.3 Cell
General Specifications
| Battery Type | Rechargeable Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 48V (15S) |
| Nominal Capacity | 50Ah |
| Energy | 2400Wh (2.4kWh) |
| Configuration | 15S1P (Prismatic Cells, M6 Screw Type) |
| Cycle Life | ≥ 4000 Cycles @ 0.5C, 80% DOD |
| Weight | ~30kg |
| Dimensions D*W*H | 480mm × 440mm × 133mm (3U Rack Mount) |
