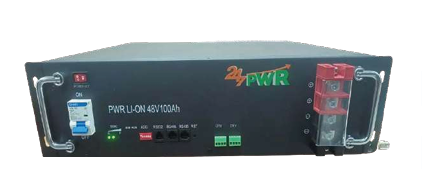

LFP1C48100
✓ Built-in Battery
✓ Optimum adaptation
✓ Longer life cycle
✓ Fully replaceable
✓ Maintenance free
Overview
247PWR Technology provides safe LiFePO₄ battery solutions for UPS and Energy storage system. This battery system serves for UPS and Energy storage system with perfect compatibility and long life cycle.
Product Features
- Built-in Battery Management System (BMS) with interface RS485 & RS232
- Optimum adaptation to variety applications with parallel expansion support
- Longer life cycle up to 5000 cycles @80% DOD
- Fully replaceable with Lead-acid/Ni-Cd batteries
- Maintenance free with standard 19" design for easy installation
Technical Specification
| Model | LFP1C4810 |
| Rated Capacity | 100Ah |
| Nominal Voltage | 48V |
| Discharge Ending Voltage | 42V |
| Recommended Charging Voltage | 54V |
| Max. Charging Current | 100 A |
| Max. Charging Current | 100 A |
