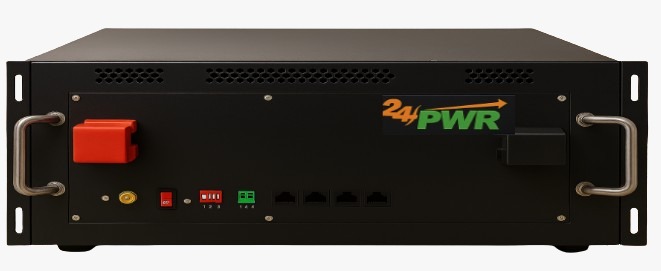

LFP-48V314AH
✓ Built-in Battery
✓ Optimum adaptation
✓ Longer life cycle
✓ Fully replaceable
✓ Maintenance free
Overview
PWR247 Technology provides safe LiFePO4 battery solutions for UPS and Energy storage system.
This battery system serves for UPS and Energy storage system with perfect compatibility and long life cycle.
Product Features
- RS485 Communication output for monitoring
- Internal cell balancing ,Passive equalization, the maximum equalization current up to 100mA
- High-precision cell voltage and temperature
Technical Specification
| Model | LFP-48V314Ah |
| Rated Capacity | 314 Ah |
| Nominal Voltage | 48V |
| Discharge Ending Voltage | 42V |
| Recommended Charging Voltage | 54V |
| Max. Charging Current | 157 A |
| Recommended Charging Current | 100A |
| Max. Continue Discharging Current | 157A |
| Weight | 115Kg |
| SOC light | 6*LED for monitoring |
| Parallel Connection | Parallel connection up to 16P |
| Dimensions (W*D*H) mm (inches) | 443*700*225mm |
| Cell | LFP 3.2V 314Ah (Prismatic) |
| Design life | More than 15 years |
| Cycle Life | More than 5000 cycles at 80% DOD* |
| IP Class | IP54 |
| Operating Temperature |
Charging: 0 to +60°C Discharging: -20 to +60°C Storage: -20 to +60°C |
| Operating Humidity | 5%~95% |
| Communication Protocal | RS485/Modbus, RS232, CAN |
| Bluetooth Monitoring | Available |
| LCD Display | Optional |
