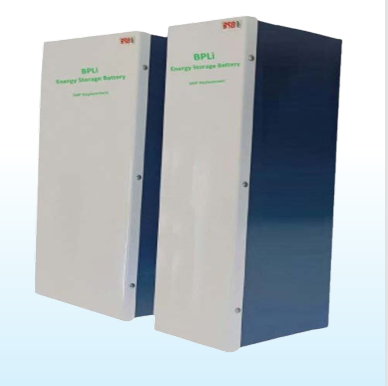

BPLi Series
LiFePO4
Equivalent SMF Battery Pack
✓ High Performance
✓ Smart Management System
✓ Heat Resistance
✓ Long Lifespan
✓ Sustainable Energy
✓ Communication
✓ Expandable Capacity
36V Lithium Battery Pack Technical Specification
| Model | BPLi36V26 | BPLi36V42 | BPLi36V65 |
|---|---|---|---|
| Voltage | 33.6 ~ 43.2V DC | ||
| Cell Voltage | 3.2V | ||
| Cell Configuration (Series) | 12S | ||
| Rated Voltage | 38.4V | ||
| Equivalent SMF V/Ah | 36V/26Ah | 36V/42Ah | 36V/65Ah |
| Maximum Charge Rate | 1C | ||
| Discharge Cut‐off Voltage | 33.6V | ||
| Cycle life (@25℃,0.5C/0.5C,80%DOD) | Up to 5000 | ||
| Short‐circuit current (<10ms) | Approx. 1000A | ||
| Dimension (W x D x H) in mm | 90 x 300 x 310 | 160 x 200 x 330 | — |
| Approx. Weight (Kg) | 9 | 17 | 23 |
| Internal Resistance Fully Charged @25°C | ≤ 50mOhm | ||
| Thermal Management | Natural Air Cooling | ||
